Robotic Cement & Clay 3D Printing System

Robotic Cement & Clay 3D Printing System



The industrial-grade robotic arm combined with the Stone Flower 2.5L BIG extruder and print head forms a high‑precision 3D‑printing platform for concrete, clay, geopolymers, and other mineral materials, and viscous liquids. This system enables large‑format, continuous, and stable additive manufacturing for research, design, and industrial applications. For large projects can be up-scaled with 1K/2K mixing print head for concrete and continuous concrete pump.



The six‑axis robotic arm provides a 1850 mm reach and ±0.05 mm repeatability, enabling precise motion control for complex geometries and large objects. Effective payload up to 20kg. The Stone Flower 2.5L extruder with print head 6/6R operates as a high‑pressure ram system, for stable, controlled deposition. Together, they offer industrial‑grade flexibility, continuous printing capability, and compatibility with a wide range of clay‑ and cement‑based materials.

14.280,00 €

incl. VAT and free shipping to selected countries

Free shipping to the following countries: Afghanistan, Albania, Andorra, Angola, Anguilla, Antarctica, Antigua and Barbuda, Armenia, Netherlands Antilles, United Arab Emirates , Algeria, American Samoa, Argentina, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Bouvet Island, Brazil, British Indian Ocean Territory, British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Cayman Islands, Central African Republic, Chad, Chile, China, Christmas Island, Cocos [Keeling] Islands, Colombia, Comoros, Congo - Brazzaville, Congo - Kinshasa, Cook Islands, Costa Rica, Côte d’Ivoire, Croatia, Cuba, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Falkland Islands, Faroe Islands, Fiji, Finland, France, French Guiana, French Polynesia, French Southern Territories, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Greenland, Grenada, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Heard Island and McDonald Islands, Honduras, Hong Kong SAR China, Hungary, Iceland, India, Indonesia, Iran, Iraq, Ireland, Israel, Italy, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Libya, Liechtenstein, Lithuania, Luxembourg, Macau SAR China, Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Martinique, Mauritania, Mauritius, Mayotte, Mexico, Micronesia, Moldova, Monaco, Mongolia, Montenegro, Montserrat, Morocco, Mozambique, Myanmar [Burma], Namibia, Nauru, Nepal, Netherlands, New Caledonia, New Zealand, Nicaragua, Niger, Nigeria, Niue, Norfolk Island, Northern Mariana Islands, North Korea, Norway, Oman, Pakistan, Palau, Palestinian Territories, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Pitcairn Islands, Poland, Portugal, Puerto Rico, Qatar, Réunion, Romania, Russia, Rwanda, Saint Barthélemy, Saint Helena, Saint Kitts and Nevis, Saint Lucia, Saint Martin, Saint Pierre and Miquelon, Saint Vincent and the Grenadines, Samoa, San Marino, São Tomé and Príncipe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Georgia and the South Sandwich Islands, South Korea, Spain, Sri Lanka, Sudan, Suriname, Svalbard and Jan Mayen, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Thailand, Timor-Leste, Togo, Tokelau, Tonga, Trinidad and Tobago, Tunisia, Turkmenistan, Turks and Caicos Islands, Tuvalu, Uganda, Ukraine, United Kingdom, United States, Uruguay, U.S. Minor Outlying Islands, U.S. Virgin Islands, Uzbekistan, Vanuatu, Vatican City, Venezuela, Vietnam, Wallis and Futuna, Western Sahara, Yemen, Zambia, Zimbabwe Show more Show less

  • Available
  • Ships in 4 weeks1

Contact us for quote!

* Please specify, do you need ram extruder or concrete pump, and add your shipping address to let us evaluate the shipping/installation costs for you.

Note: Please fill out the fields marked with an asterisk.

Technical Description

1. Six‑Axis Robot

  • Type: 6‑axis industrial robot

  • Payload: 20 kg

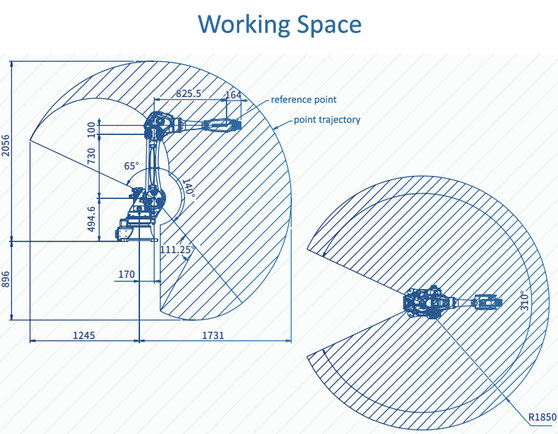

  • Arm reach: 1850 mm

  • Repeatability: ±0.05 mm

  • Protection rating: Wrist IP54, body IP40

  • Weight: approx. 230 kg

  • Power capacity: 5.87 kVA

  • Lightweight arm structure

  • Compact and rigid mechanical layout

  • Optimized for high‑speed motion in confined spaces

  • Suitable for flexible production environments

2. Stone Flower 2.5L BIG Extruder System

Supported Materials

  • Clay (throwing density)

  • Concrete, mortar

  • Geopolymers

  • Biopolymers

  • Viscous pastes and suspensions

Performance

  • Extruder capacity: 2.5 L

  • Flow rate: up to 200/1000 ml/min

  • Nozzle diameters: from 0.25mm up to 33mm.

  • Maximum working pressure: 10 bar

  • Max aggregate size: up to 6 mm (recommended up 1.2mm)

  • Power: 230 V AC, 144 W

3. RAM Extruder Unit

  • Dimensions: 182×174×1160 mm

  • Barrel: 500 mm length, Ø80×90 mm, polycarbonate

  • Frame: 100×108×540 mm

  • Motor: Nema 23, 1.9 Nm holding torque

  • Outlet: 1" tri‑clamp (50.5 mm)

  • Materials: aluminum, stainless steel, polycarbonate

4. Print Head 6/6R

  • Two‑flute auger screw (SS316), chemically resistant

  • Leak‑free construction with replaceable seal and bearing

  • Dimensions: 42×72×124 mm (without nozzle)

  • Inlet: 16 mm push‑in connector

  • Outlet: 1/4" NPT

  • Motor: Nema 17, 40 Ncm

  • Included nozzles: 2.5 mm, 4 mm, 7 mm + luer adapter + 6 luer tips

5. Control Unit



  • Dual Pololu 36v4 high‑power stepper drivers

  • Up to 3.0 A per phase

  • Can operate as external stepper driver or independent controller

  • Adjustable feed rates
