Ram extruders and control units

Ram extruder S, 0.5L

NETTO PRICE 250 €



Equipped with the strong geared stepper motor for precise volumetric dispensing of slightly diluted clay, porcelain, highly viscous liquids and pastes. Estimated working pressure up to 10bar. Easy to assemble, disassemble, clean and maintain. Does not use compressed air. Does not have exposed moving parts. Safe and silent solution.

  • Capacity 0.5l (900g of clay).
  • Internal diameter of clay container 45.2mm, length 380mm
  • Dimensions D = 80mm, L = 930mm
  • geared stepper motor Nema17, 1.68A per phase, 3Nm, 2-phase, 1.8deg
  • Supplied with 1m long PTFE hose 16x14mm.

The pump is made of PVC. If used with the materials other than wet clay/porcelain, please check chemical compatibility first.



This is a spare part! While the ram extruder can be directly connected to the motherboard of your 3D printer as a second extruder, we recommend to use this as a part of 3D Printing KIT and connect to the printer via Control Unit. When used without control unit, this may need to change settings of your stepper motor driver. The stepper motor driver must support the current 1.7A per phase. In case of questions please contact us.



Ram extruder, 0.5l

297,50 €

  • 3,6 kg
  • Available
  • Ships within 1 week1

Ram Extruder L, 1.5L

NETTO PRICE 560 €



Equipped with the strong geared stepper motor Nema23 for precise volumetric dispensing of slightly diluted clay, porcelain, highly viscous liquids and pastes. Estimated working pressure up to 20bar. Easy to assemble, disassemble, clean and maintain. Does not use compressed air. Does not have exposed moving parts. Safe and silent solution.

  • Capacity 1.5l (2700g of clay)
  • Internal diameter of clay container 67.8mm, length 480mm (approx.)
  • Strong geared motor Nema23
  • Dimensions D = 110mm, L = 1270mm
  • Supplied with 1m long PTFE hose 16x14mm

666,40 €

  • 5,7 kg
  • Available
  • Ships within 1 week1
Download
Dimensions of ram extruder L (1.5L)
syringe_pump_1_5L.PDF
Adobe Acrobat Document 42.2 KB

Ram extruder BIG, 2.5L or 5L

NETTO PRICE from 949 €



Powerful extruder for all types of clay. Equipped with the strong geared stepper motor Nema23. Durable metallic construction from stainless steel and aluminium. Ouput has standard 1 inch NPT thread (about 25mm) . Capacity vary from 2.5L up to 5L (real capacity, excluding volume of the plunger) upon request.

  • Capacity 2.5l to 5l
  • Dimensions LxDxH = 110x110x670mm
  • Supplied with 2m long PVC hose, 25x3mm (ID x Wall thickness)
  • Barrel for clay is from aluminium alloy. ID = 80mm, wall thickness 5mm. Length from 500 to 1000mm.

1.130,00 €

  • 8 kg
  • Available
  • Ships in 4 weeks1

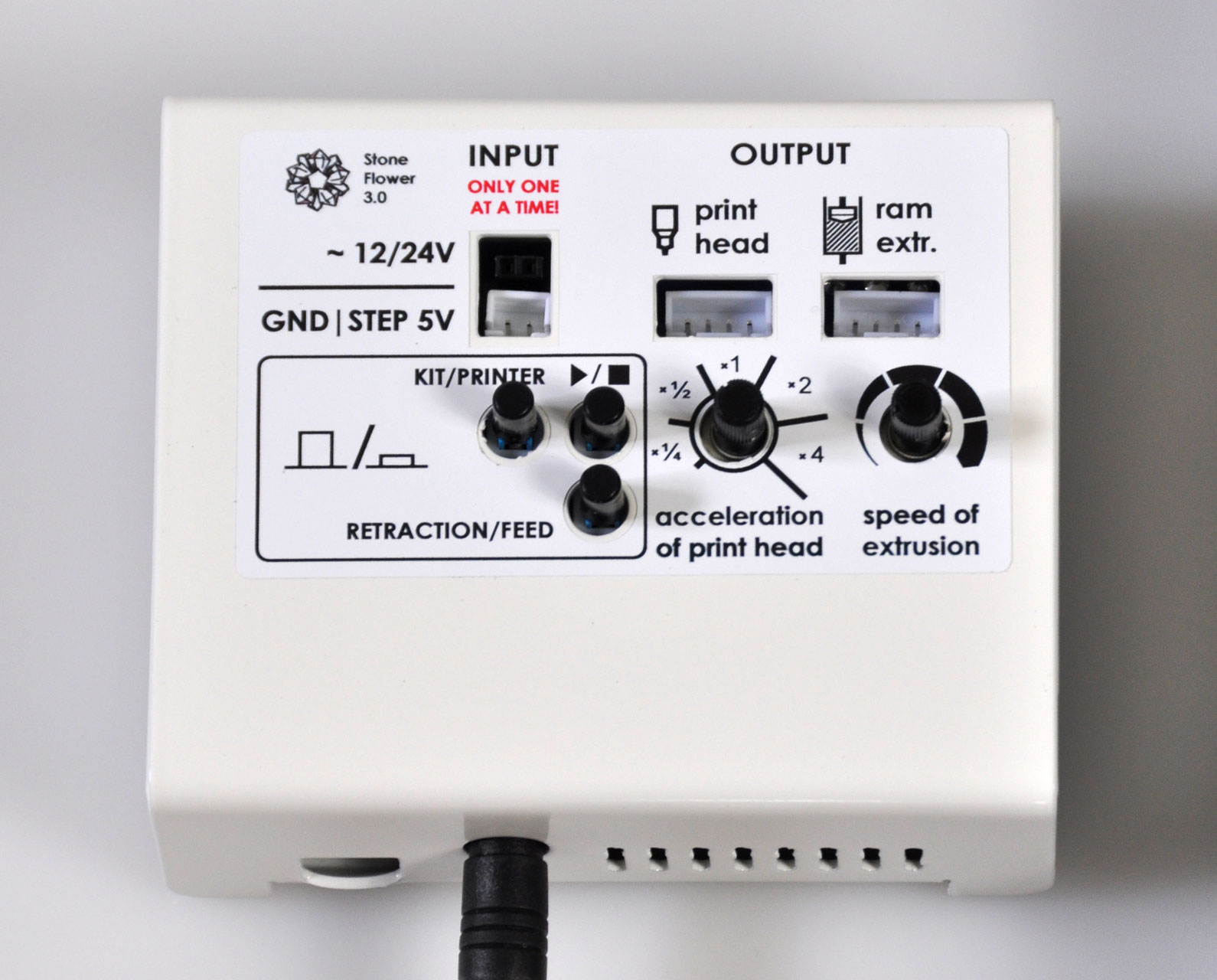

Control unit 3.0 (electronics)

NETTO PRICE 230 €

  • Can be easily connected to a 3d printer in place of the extruder motor
  • Power source (AC 100-240V/DC 24V, 144W)
  • Two Pololu High-Power Stepper Motor Drivers 36v4
  • "Infinite printing" function
  • Range and scale of feed rates, available in the constant feed mode (KIT-mode), can be reprogrammed according to your needs

If you order control unit with a print head and a ram extruder, choose the KIT instead to save shipping costs.

273,70 €

  • 0,7 kg
  • Available
  • Ships within 1 week1

Barrel for clay

spare barrel

41,65 €

  • 0,8 kg
  • Available
  • Ships within 1-3 days1
